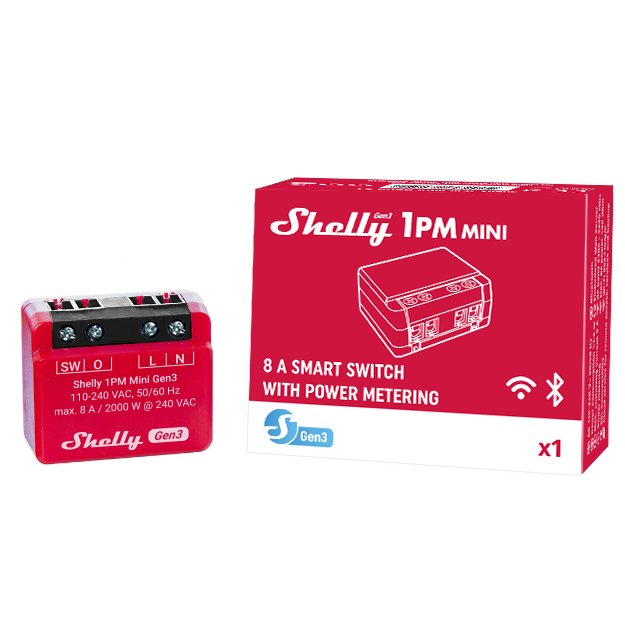

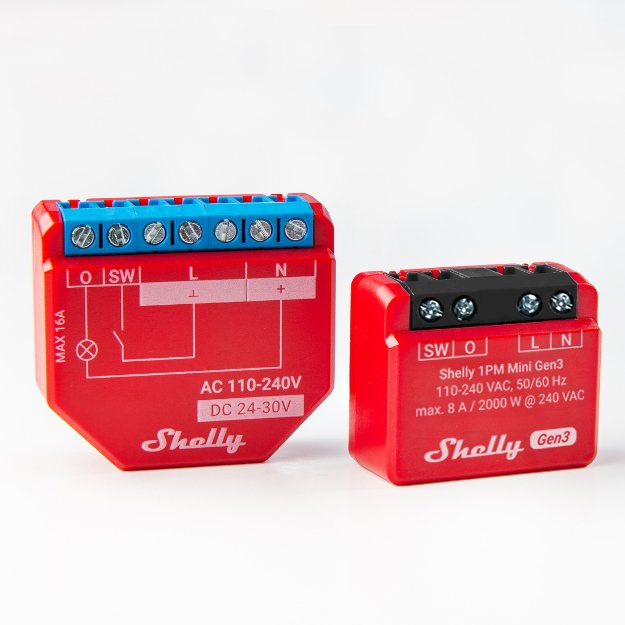

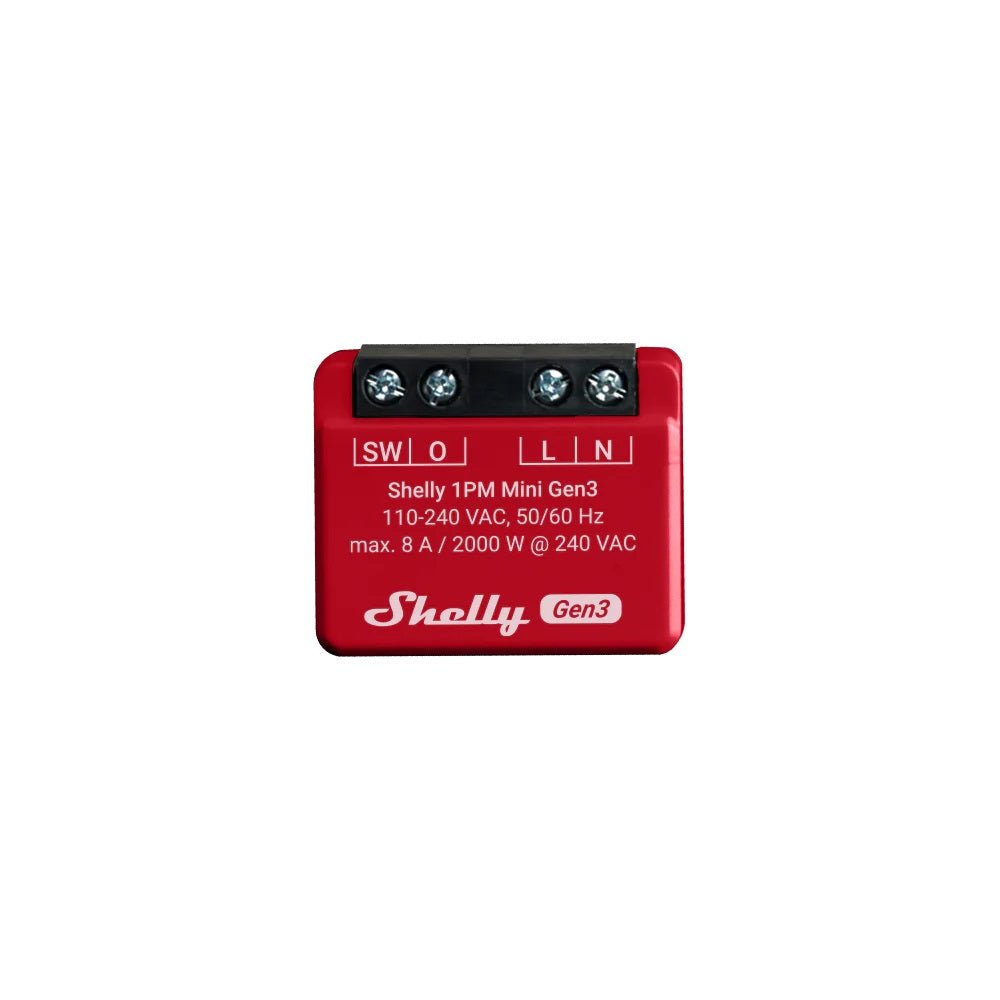

Shelly 1PM Mini Gen3
Shelly 1PM Mini Gen3
Couldn't load pickup availability
Transform your home into a smart haven with Shelly 1PM Mini Gen3, the world's smallest relay switch. Easily automate your lights or small appliances, control and monitor them from anywhere, and save time and energy. Its compact design allows for easy installation behind any switch or socket.
- Equipped with a new processor & increased flash memory - ESP Shelly
- Improved durability of terminals
- Supports up to 8 A at 240 VAC
- Wi-Fi range extender & Bluetooth gateway
- Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation platform
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
Discover the convenience and power of the Shelly 1PM Mini Gen3! With all the capabilities of standard switches packed into a compact form, it doesn't compromise on performance. Equipped with 8MB of memory, this device is efficient and responsive for a smoother and faster operation. Upgrade your home with Shelly now!
Specifications
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 29x34x16 ±0.5 mm |
| Weight: | 18 ±1 g |
| Mounting: | Wall box |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm |
| Shell material: | Plastic |
| Color: | Red |
| ENVIRONMENTAL | |
| Ambient temperature: | -20 °C to 40 °C |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m |
| ELECTRICAL | |
| Power supply: | 110 - 240 VAC / 24 - 30 VDC |
| Relay: | NO contact, 1-pole, µ contact |
| External protection: | 10 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | <1.2 W |
| OUTPUT CIRCUITS RATINGS | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | N/A |
| Max switching current AC: | 8A |
| Max switching current DC: | N/A |
| Max switching power AC: | 2000 W |
| Power measurement: | Yes |
| Voltage protection / Cutoff: | Yes |
| Current protection / Cutoff: | Yes |
| Max power protection / Cutoff: | Yes |
| RADIO | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m and 50 m outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4,2 |
| Bluetooth Range: | Up to 10 m and 30 m outdoors |
| (Depends on local conditions) | |
| MCU | |
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
| FIRMWARE CAPABILITIES | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| MQTT: | Yes |
| UPD: | Yes |
| Scripting: | Yes |
*Resistive loads only, Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum without sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
