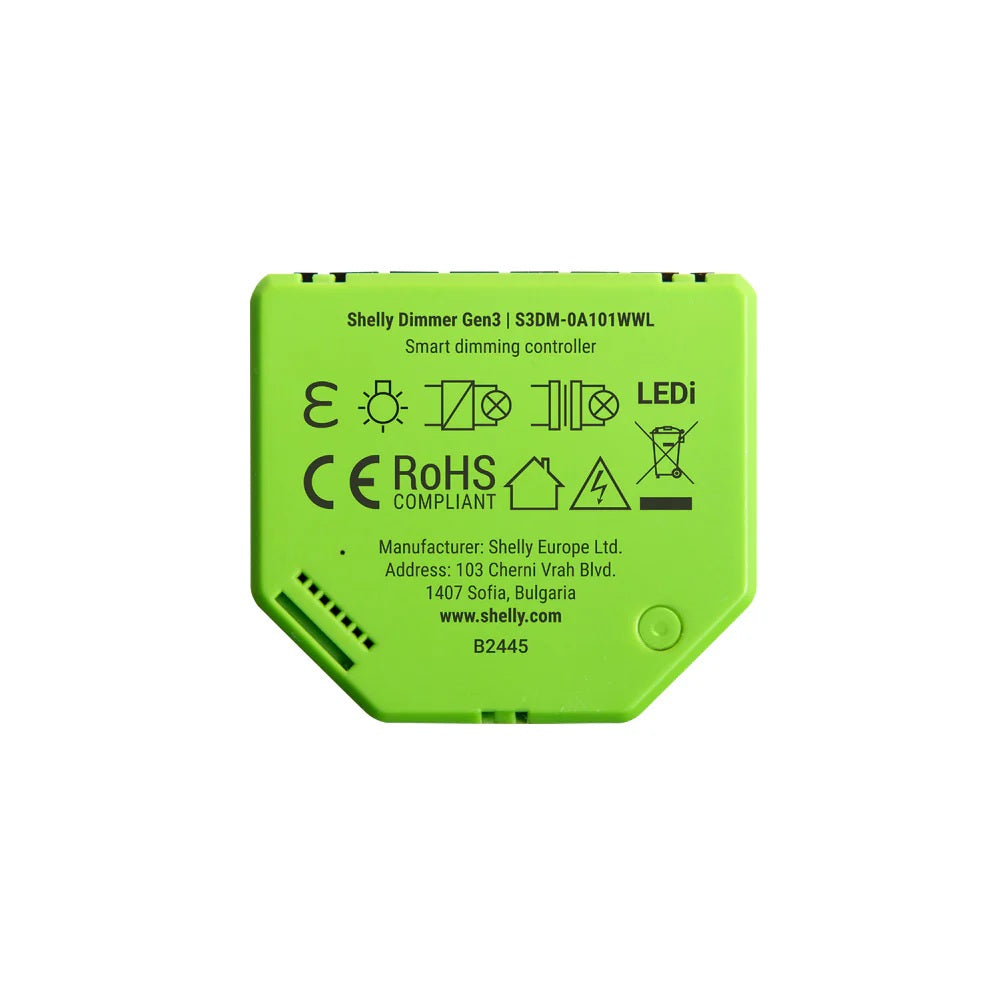

Shelly Dimmer Gen3
Typically used for:
- LED strips
- Dimming
- Lights
WiFi-operated dimmer (no neutral required!)
Control and dim a wide range of halogen lights, dimmable LED bulbs and ferromagnetic transformers from anywhere, with the world's smallest WiFi-operated dimmer. No neutral wire required!
These relays go in behind your existing wall switches to make them 'Smart'. They can also be wired in at the other end with the device to be controlled.
Perfect for those who like the aesthetics of their current switches and don't want to swap them out or maybe the other half isn't so keen on new technology and wants the feel of classic switches.
Key Features:
- Wi-Fi operated Bluetooth inclusion or use it as a Bluetooth gateway.
- No need for neutral: Can be used without a neutral wire. Bypass is required when the device is used without neutral and the load is under 20 W.
- Supported light types: Dimmable LED lamps: up to 150 W Incandescent bulbs: up to 200 W Halogen lamps: up to 200 W Iron-core transformer with low-voltage incandescent lamps: up to 200 VA Dimmable electronic transformers: up to 200 W
- Overload and temperature protection
- Equipped with a new processor & increased flash memory - ESP Shelly
- Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
- Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.
Specifications
|
Physical |
|
|
Size (HxWxD): |
38x42.5x16.5 mm / 1.50x1.67x0.65 inch |
|
Weight: |
24.3 g / 0.86 oz |
|
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
|
Conductor cross section: |
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
|
Conductor stripped length: |
5 to 6 mm / 0.20 to 0.24 in |
|
Mounting: |
In-wall |
|
Shell material: |
Plastic |
|
Shell color: |
Shell: Lime Print: Black |
|
Connector color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
220-240 V~ 50 Hz |
|
Power consumption: |
< 1.5 W |
|
Neutral not needed: |
Yes |
|
Min. load without neutral and without a Bypass: |
20 W |
|
Dimming type |
Trailing edge |
|
External protection: |
16 A, tripping characteristic B or C, |
|
Short circuit protection |
Yes |
|
Output circuits ratings |
|
|
Max. output power: |
200 W |
|
Sensors, meters* |
|
|
Voltmeter range (AC): |
180 V - 240 V |
|
Voltmeter accuracy: |
± 5 % (when used with neutral) |
|
Ammeter range (AC) |
0 A - 3 A, |
|
Ammeter accuracy: |
± 5 % (when used with neutral) |
|
Internal-temperature sensor: |
Yes |
|
*Precise measurement is possible only when used with neutral. |
|
|
Radio |
|
|
Wi-Fi |
|
|
Protocol: |
802.11 b/g/n |
|
RF band: |
2412 - 2472 МHz |
|
Max. RF power: |
< 20 dBm |
|
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
|
Bluetooth |
|
|
Protocol: |
4.2 |
|
RF band: |
2402 - 2480 MHz |
|
Max. RF power: |
< 4 dBm |
|
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
|
Microcontroller unit |
|
|
CPU: |
ESP32 C3 STM32 G051 |
|
Clock frequency: |
ESP32 C3: 40 Mhz |
|
Flash: |
8 MB |
|
Firmware capabilities |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook… |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
|
Advanced schedules: |
Yes |
|
KVS (Key-Value Store): |
Yes |
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
