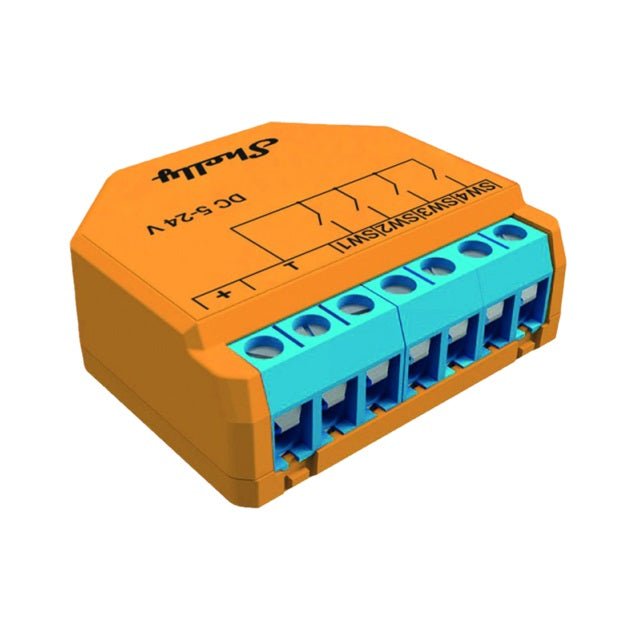

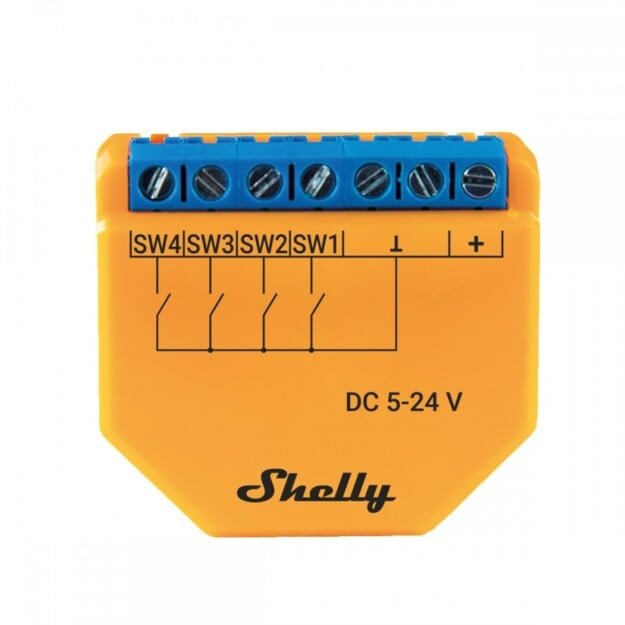

Shelly Plus I4 DC

Name: Shelly Plus I4 DC
Brand: Lykalyte
SKU: SHEPlusI4DC
Price: 36.99 NZD
Availability: InStock

Shelly Plus I4 DC

$36.99

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Enhance your actions with Shelly Plus I4 DC, the Wi-Fi-operated 4-digital inputs controller. Manually activate or deactivate scenes, run synchronized actions, or execute complex trigger scenarios with ease.

This DC input reader device does not contain any for relays.

Extremely fast processor – ESP32, Improved API interface
Multi-click - Up to 12 possible actions
Java Scripts support for customized and complex scenarios
Designed to fit in most standard electrical boxes and switches
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Has an embedded web server and connects to your Wi-Fi network

Specifications

PHYSICAL
Size (HxWxD):	37x42x16 ±0.5 mm
Weight:	17 g
Mounting:	Wall box
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length:	5 to 6 mm
Shell material:	Plastic
ENVIRONMENTAL
Ambient temperature:	-20 °C to 40 °C
Humidity	30 % to 70 % RH
Max. altitude	2000 m
ELECTRICAL
Power supply:	5 - 24 VDC
Power consumption:	< 1 W
SENSORS, METERS
Temperature sensor:	Yes
RADIO
RF band:	2400 - 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m indoors and 50 m outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m indoors and 30 m outdoors (Depends on local conditions)
MCU
CPU:	ESP32
Flash:	4 MB
FIRMWARE CAPABILITIES
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	mJS
MQTT:	Yes
CoAP:	No
