Shelly Pro 1
Shelly Pro 1
Couldn't load pickup availability

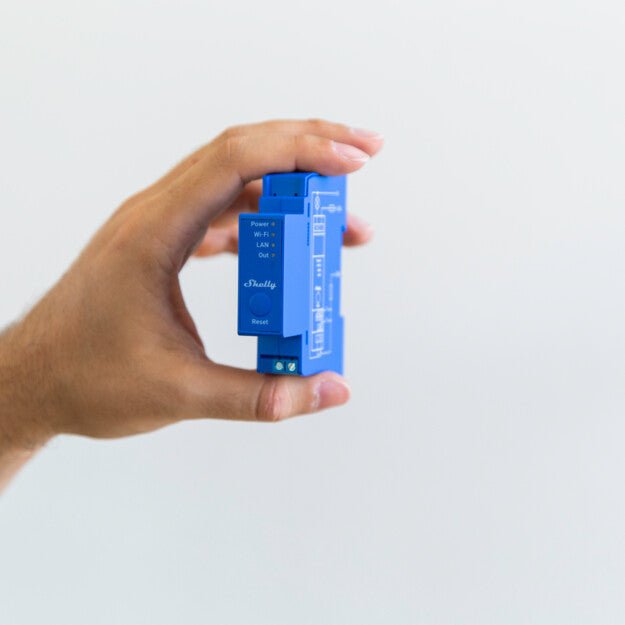

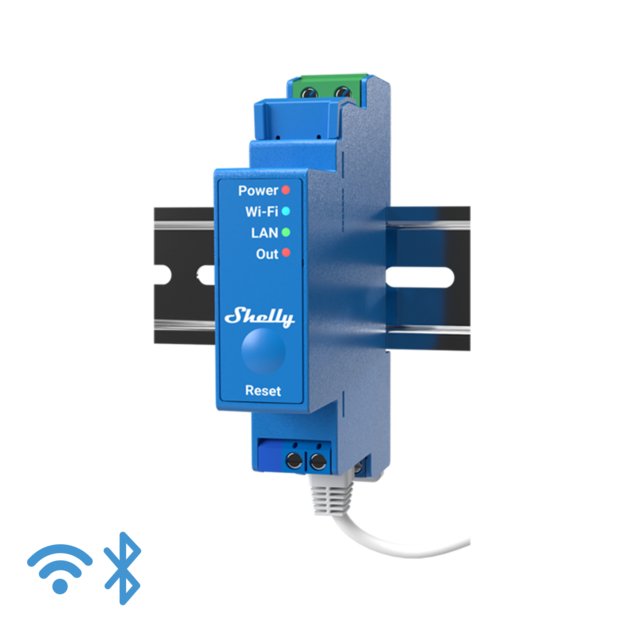

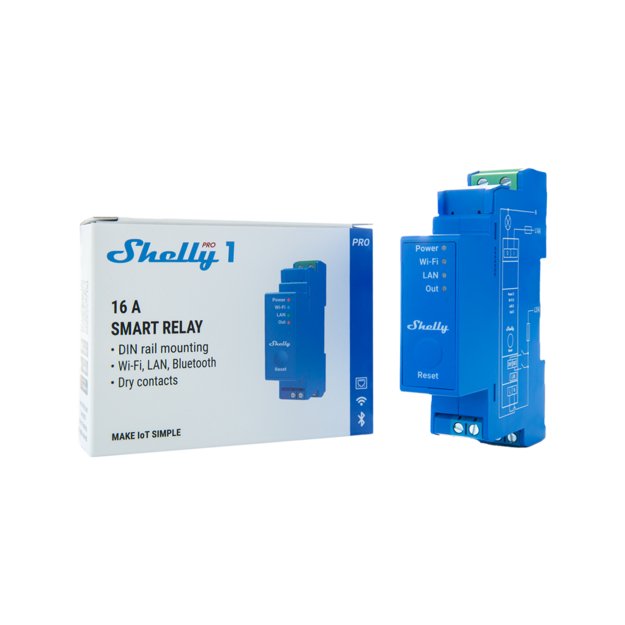

The Shelly Pro 1 is a professional 1-channel DIN rail smart switch with dry contacts, designed for home and facility automation with remote control. It can be easily mounted inside an electrical Switchboard and offers enhanced safety features like temperature, overpower, and overvoltage protection.
Key features of the Shelly Pro 1 include:
- 1 output relay rated for up to 16A for controlling lights, appliances, etc.
- Potential-free dry contact outputs provide flexibility for a wide range of voltage levels
- LAN, Wi-Fi, and Bluetooth connectivity for reliable control
- Supports voice assistants like Amazon Alexa and Google Home
- Temperature sensor and scripting capabilities for custom automation
- Flame retardant casing and overheating protection for safety
- Compatible with Shelly Cloud, MQTT, HTTP webhooks
- Weekly scheduling to automate devices based on your routines
- Perfect for new homes, offices, stores, businesses and facilities
With its DIN rail design, robust output, and advanced smart features, the Shelly Pro 1 enables sophisticated automation and energy efficiency in residential and commercial environments. Its dry contacts and safety protections make it a reliable smart switch solution.
|
Specifications |
|
|
Physical |
|
|
Size (HxWxD): |
94x19x69 ±0.5 mm |
|
Weight: |
63 g |
|
Mounting: |
DIN rail |
|
Screw terminals max torque: |
0.4 Nm / 3.54 lbin |
|
Conductor cross section: |
0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors) |
|
Conductor stripped length: |
6 to 7 mm (green connector) 5 to 6 mm (blue connectors) |
|
Shell material: |
Plastic |
|
Color: |
Blue |
|
Environmental |
|
|
Ambient temperature: |
-20 °C to 40 °C |
|
Humidity |
30 % to 70 % RH |
|
Max. altitude |
2000 m |
|
Electrical |
|
|
Power supply voltage AC: |
110 - 240 V |
|
Power supply voltage DC: |
N/A |
|
Power consumption: |
< 3 W |
|
Neutral not needed: |
No |
|
Output Circuits Ratings |
|
|
Max switching voltage AC: |
240 V |
|
Max switching voltage DC: |
N/A |
|
Max switching current AC: |
16 A |
|
Max switching current DC: |
N/A |
|
Sensors |
|
|
Temperature sensor: |
Yes |
|
Radio |
|
|
RF band: |
2400 - 2495 MHz |
|
Max. RF power: |
<20 dBm |
|
Wi-Fi protocol: |
802.11 b/g/n |
|
Wi-Fi Range: |
Up to 30 m indoors and 50 m outdoors (Depends on local conditions) |
|
Bluetooth Protocol: |
4.2 |
|
Bluetooth Range: |
Up to 10 m indoors and 30 m outdoors (Depends on local conditions) |
|
MCU |
|
|
CPU: |
ESP32-D0WDQ6 |
|
Flash: |
8 MB |
|
Firmware |
|
|
Schedules: |
20 |
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
mJS |
|
MQTT: |
Yes |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
