Shelly Pro 3EM Switch Add-on
Shelly Pro 3EM Switch Add-on
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

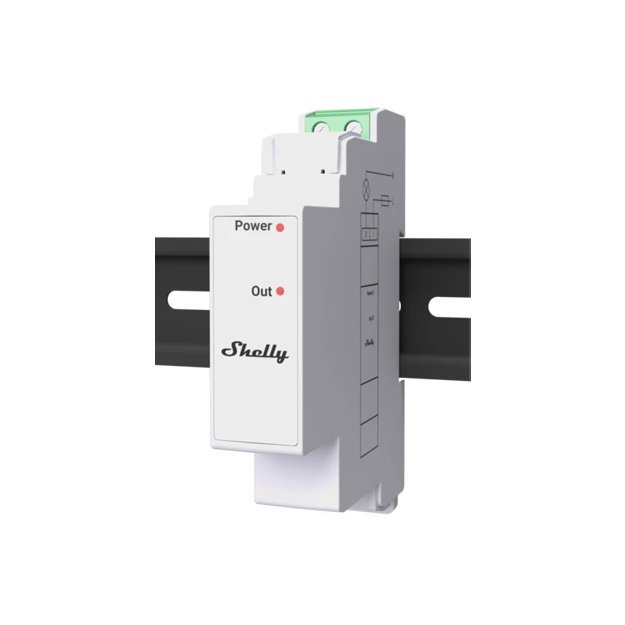

Add-on for Shelly Pro 3EM
Expand the capabilities of your Shelly Pro 3EM device with the galvanically isolated Switch Add-on. Take control over your consumption with the ability to easily control contactors and other electrical devices. Flexible and convenient, enhance your energy management now!
- Dry contacts
- DIN-rail mountable
*Only compatible with Shelly Pro 3EM
Specifications
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 94x19x69 ±0.5 mm |
| Weight: | 20 ±1 g |
| Mounting: | DIN rail, attached to a Shelly Pro 3EM |
| Screw terminals max torque: | 0.4 Nm / 4.43 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded and bootlace lugs) |
| Conductor stripped length: | 6 to 7 mm |
| Shell material: | Plastic |
| Color: | White |
| ENVIRONMENTAL | |
| Ambient temperature: | -20 °C to 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m |
| ELECTRICAL | |
| Power supply voltage AC: | N/A |
| Power supply voltage DC: | 3.3 V and 12 V (from Shelly Pro 3EM device) |
| Power consumption: | < 1 W |
| OUTPUT CIRCUITS RATINGS | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | 30V |
| Max switching current AC: | 2A |
| Max switching current DC: | 2A |
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
