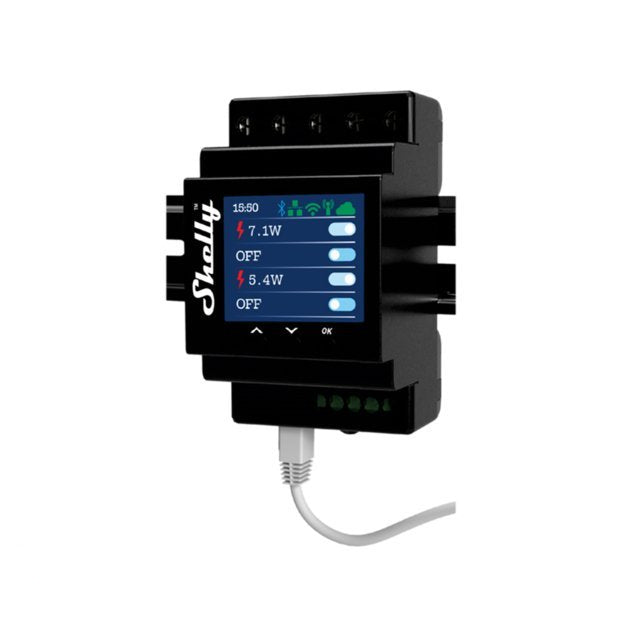

Shelly Pro 4PM
Shelly Pro 4PM
Couldn't load pickup availability
Introducing the Shelly Pro 4PM - a versatile and powerful 4-channel relay for all your energy control needs. With a maximum capacity of 40A and precise power metering capabilities for each channel, you can easily monitor and optimize your energy consumption. With multiple connectivity options and advanced scripting features, automate your home or business in a secure and reliable way.
- LAN, Wi-Fi, and Bluetooth connection
- 4 outputs, 16A Max each. Total device maximum of 40A (Maximum recommended 10A per circuit)
- Precise power metering
- Overpower and overvoltage protection of the load.
- DIN rail mountable
- 1.8-inch color screen with navigation keys
- 1- phase control
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistant
Experience the power of the Shelly Pro 4PM, a professional 4-channel DIN rail smart switch with advanced power metering capabilities. Enhance your control and monitoring abilities with this cutting-edge device, designed to optimise your energy usage and improve efficiency. Get ready to revolutionise your smart home experience with the Shelly Pro 4PM.
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 96x53x59 ±0.02 mm |
| Weight: | |
| Mounting: | DIN rail |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin (green connectors) |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) |
| Conductor stripped length: | 6 to 7 mm (green connectors) |
| Shell material: | Plastic |
| Color: | Black |
| ENVIRONMENTAL | |
| Ambient temperature: | -20 °C to 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m |
| ELECTRICAL | |
| Power supply voltage AC: | 110 - 240 V |
| Power supply voltage DC: | N/A |
| Power consumption: | < 4 W |
| Neutral not needed: | No |
| OUTPUT CIRCUITS RATINGS | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | N/A |
| Max switching current AC: | 16 A per channel, 40 A total (Maximum recommended 10A per circuit) |
| Max switching current DC: | N/A |
| SENSORS, METERS | |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Temperature sensor: | Yes |
| RADIO | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m indoors and 50 m outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m indoors and 30 m outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32-D0WDQ6 |
| Flash: | 8 MB |
| FIRMWARE CAPABILITIES | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
