Shelly Pro 3
Shelly Pro 3
Couldn't load pickup availability

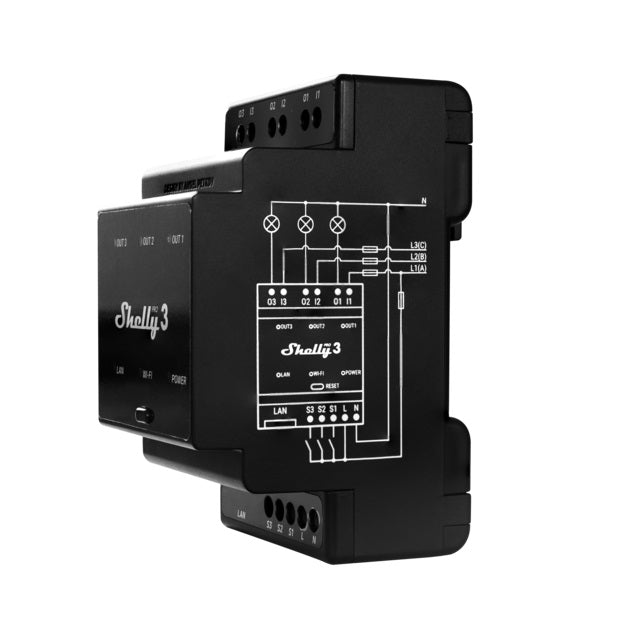

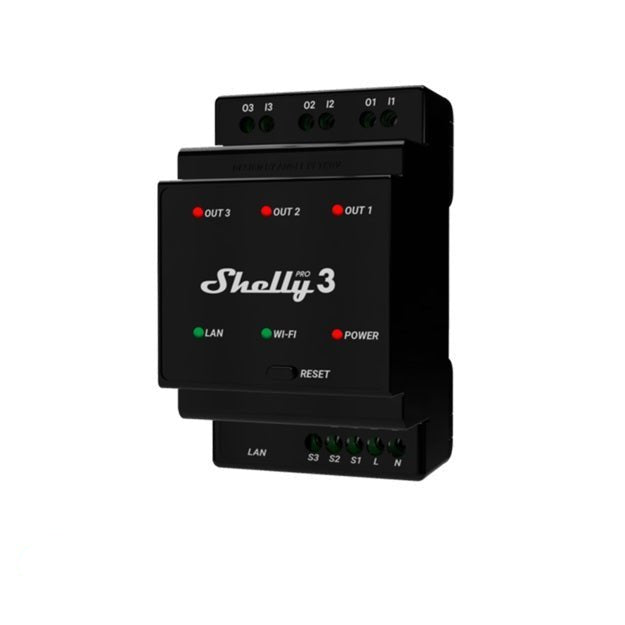

Unleash the full potential of your electrical system with Shelly Pro 3! This 3-channel DIN rail smart switch offers precise control and versatility with dry contacts. Upgrade to a professional level and experience a smart home like never before!
- LAN, Wi-Fi, and Bluetooth connection
- 3 outputs, 16A each. Total device maximum of 48A
- Dry contacts
- Overpower and overvoltage protection of the load.
- 3-phase control
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Expertly automate your residential or commercial space with Shelly Pro 3. This three-phase, 3-channel relay boasts up to 48A support for lights and appliances. Its potential-free outputs offer versatile voltage support, and scripting capabilities allow for customized automation. Create schedules, scenarios, and actions to seamlessly integrate your environment with your daily routine or business needs.
| Physical | |
|---|---|
| Size (HxWxD): | 96x53x59 ±0.5 mm |
| Weight: | 0.150 kg |
| Mounting: | DIN rail |
| Screw terminals max torque: | 0.4 Nm / 4.43 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG |
| Conductor stripped length: | 6 to 7 mm |
| Shell material: | Plastic |
| Color: | Black |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m |
| Electrical | |
| Power supply voltage AC: | 110 - 240 V |
| Power supply voltage DC: | N/A |
| Power consumption: | < 3 W |
| Neutral not needed: | No |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | 30 V |
| Max switching current AC: | 16 A per channel, 48 A total |
| Max switching current DC: | 16 A per channel, 48 A total |
| Sensors, meters | |
| Temperature sensor: | Yes |
| Radio | |
| RF band: | 24010- 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m indoors and 50 m outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m indoors and 30 m outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32-D0WDQ6 |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
*Resistive loads only, Max Load is the Maximum rated Load and it is not recommended that this device is used for anything more than short duration at or near the Maximum without sufficient allowance for excess heat.
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
