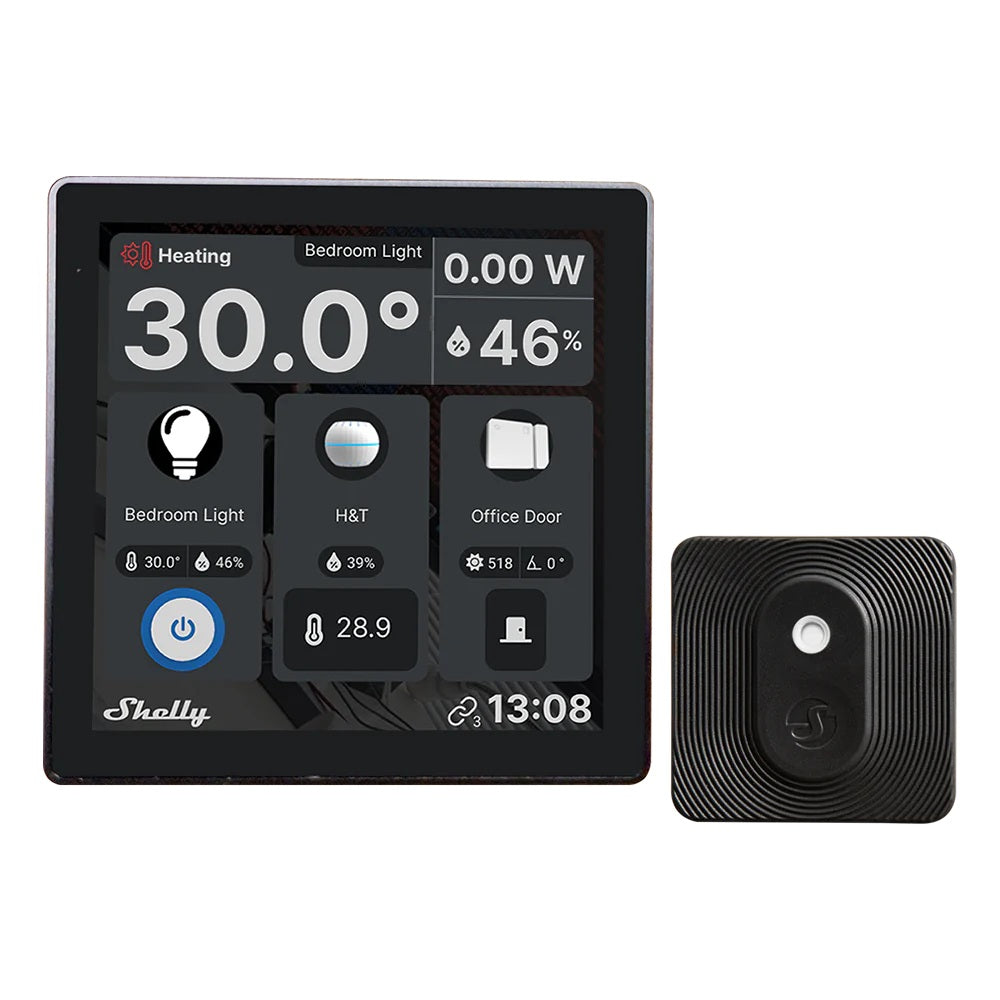

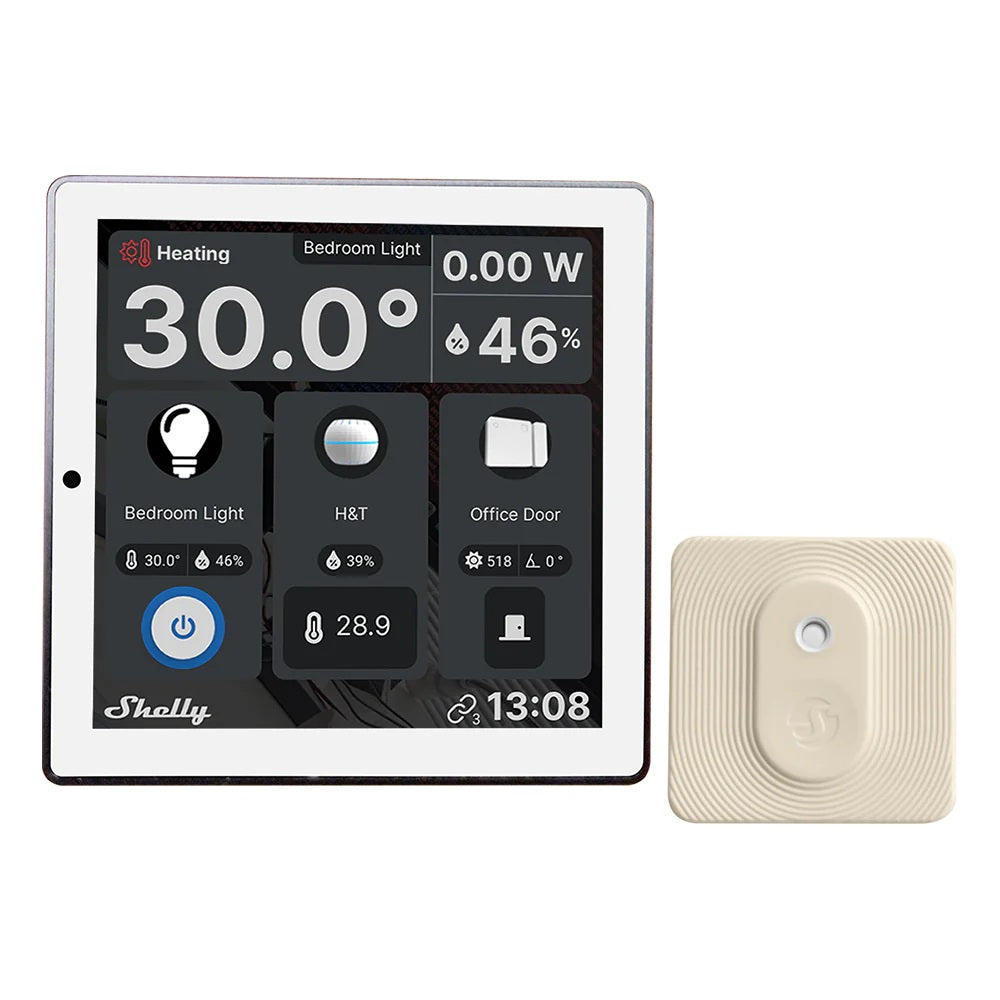

Discover the perfect addition to your Shelly devices with the Shelly Wall Display, now combined with Shelly BLU H&T for precise climate control. This 4" wall display offers centralized control and monitoring in a sleek, minimalistic design. Quickly replace your light switch and effortlessly control all Shelly devices with a single tap. With integrated sensors and power consumption monitoring, the Shelly Wall Display not only adds convenience, but also efficiency to your home. Easily customize the home screen, create scenes and schedules, and even use it as a room thermostat. Upgrade your interior and elevate your Shelly experience now!
- Integrated 5 A relay for appliance control; neutral required
- Embedded sensors for Temperature, Humidity & LUX
- Power consumption monitoring of all devices in your chosen room
- Can function as a room thermostat
- Easy navigation and customizable home screen and brightness
- Create scenes and schedules

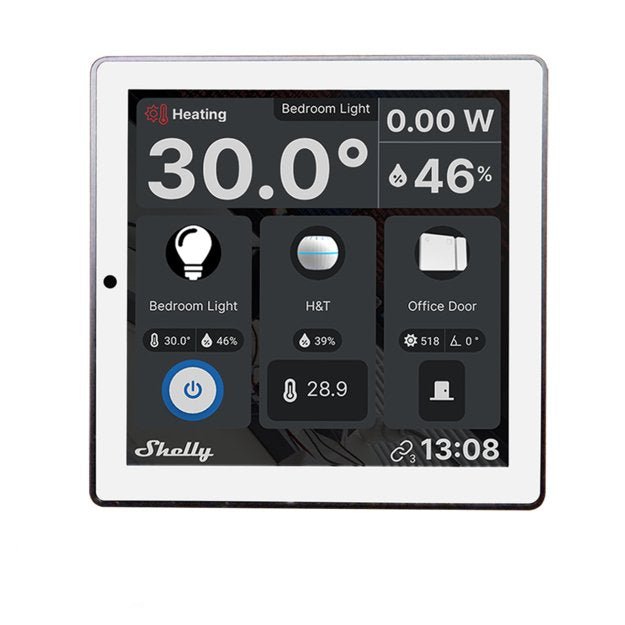

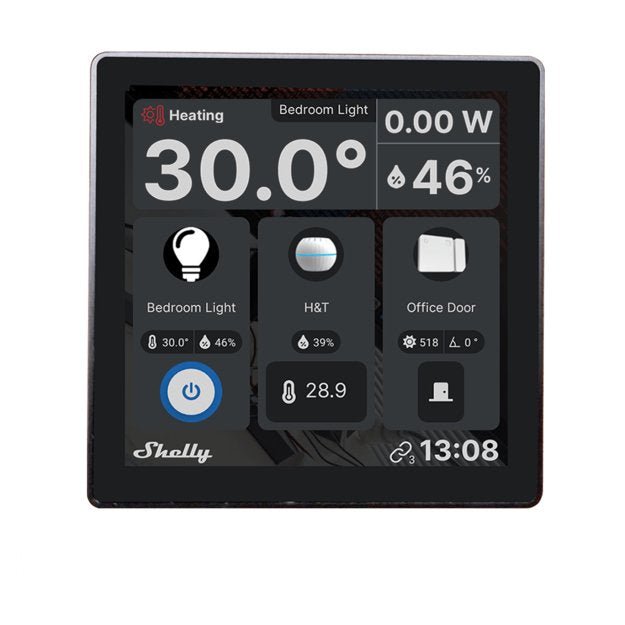

Effortlessly navigate and control your entire smart home with Shelly Wall Display. This sleek 4-inch display offers intuitive control and monitoring of all your devices, replacing the need for multiple switches. Enjoy customizable home screen options and stay informed with real-time updates on temperature, humidity, and energy consumption. Includes a built-in 5 A switch for easy operation. When paired with the Shelly BLU H&T, it can operate as a smart thermostat, enabling you to effortlessly adjust your heating or cooling settings.
| PHYSICAL | |
|---|---|
| Size (HxWxD): | 85x85x30mm |
| Mounting: | Wall box |
| Shell material: | Plastic |
| Color: | Black / White |
| ENVIRONMENTAL | |
| Ambient temperature: | -20 °C to 40 °C |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m |
| ELECTRICAL | |
| Power supply: | 230 VAC, 50/60Hz |
| External protection: | 5 A, tripping characteristic B or C, |
| 6 kA interrupting rating, | |
| Energy limiting class 3 | |
| Power consumption: | < 1.0 W |
| OUTPUT CIRCUITS RATINGS | |
| Max switching current AC: | 5A |
| Power measurement: | No |
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| SENSORS, METERS | |
| Internal-temperature sensor: | Yes |
| RADIO | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m indoors and 50 m outdoors |
| (Depends on local conditions) | |
| Bluetooth Protocol: | 4,2 |
| Bluetooth Range: | Up to 10 m indoors and 30 m outdoors |
| (Depends on local conditions) | |
| FIRMWARE CAPABILITIES | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 2 URLs per hook |
| MQTT: | Yes |
| Scripting: | Yes |
| Physical (H&T) | |
|---|---|
| Size (HxWxD): | 37x37x10mm |
| Weight: | 13 g |
| Shell material: | Plastic |
| Shell color: | Black, Mocha, Ivory |
| Environmental | |
| Ambient working temperature: | -20 °C to 60 °C |
| Humidity: | 0% to 100% RH |
| Protection class: | IP54 |
| Electrical | |
| Power supply: | 1x 3 V battery (included) |
| Battery type: | CR2032 |
| Estimated battery life: | Up to 3 years |
| Bluetooth Protocol: | 4.2 |
| RF band: | 2400 - 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 30 m outdoors, up to 10 m indoors (depending on local conditions) |
| Encryption: | AES (CCM mode) |
Australia and New Zealand Safety Standard (AS/NZS) compliant, SDoC available on request.
